The Micro-24 Platform
Space Inventor presents the Micro-24, a 100 kg class microsatellite platform that delivers high performance in a compact 1.0 m x 1.0 m x 1.0 m form factor. Built from modular equipment, the platform offers unmatched flexibility and can be tailored to a wide range of mission profiles.

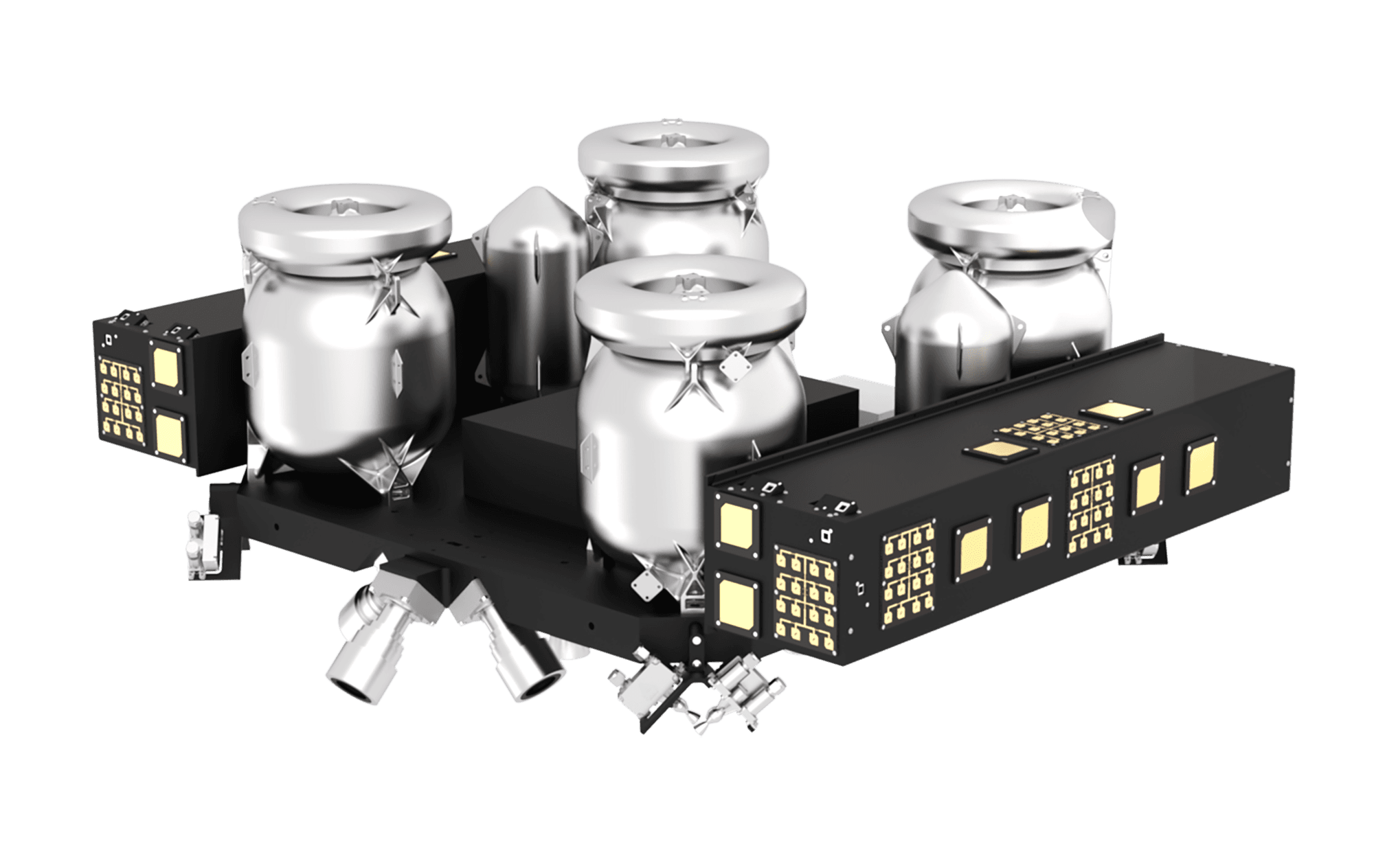

The Micro-24 is designed with hybrid chemical and electric propulsion, enabling both efficient orbit maintenance and agile maneuvering. Its deployable solar panels and storage capacity of up to 1000 Whr provide up to 500 W continuous power for payloads, supporting even the most demanding applications.
For precise operations, the platform features 3-axis active attitude control with a pointing accuracy of 0.008° (3σ), supported by star trackers, fine sun sensors, and gyros. Multiple control modes — including nadir pointing, inertial, ground spot tracking, and scanning — allow mission versatility, while dual-mode operation enables optimized configurations.
The Micro-24 is built with reliability in mind, featuring redundant data handling, advanced processors, and high-speed communications over S/X and Ka-bands. Whether for Earth observation, communications, or technology demonstration, the Micro-24 offers a robust, customizable foundation for customer-specific missions.

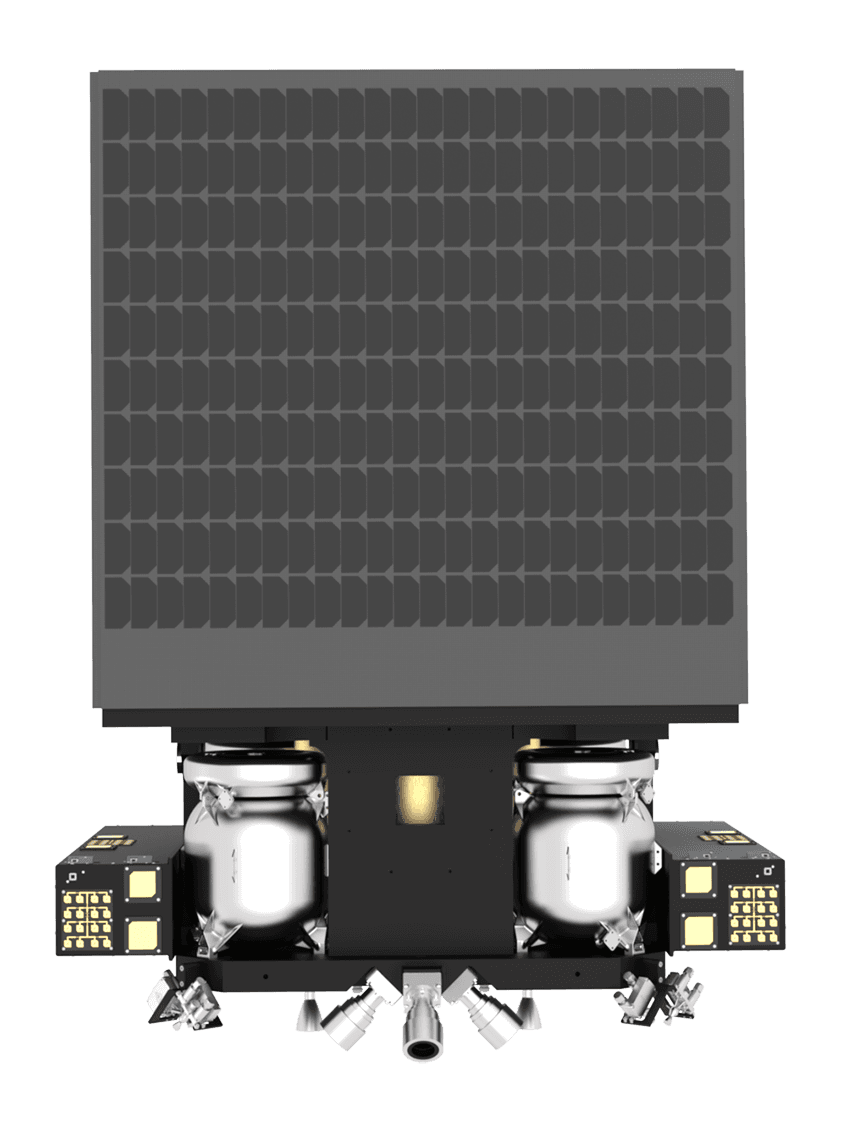

Your payload dimensions:
1 m x 1 m x 1 m
Solar Array Configuration:
4 large sun tracking solar panel per wing: 250 W
6-12 x Sun Sensors
Platform Mass:
100 kg
Redundant Radio Links:
2200 - 2290 MHz 10 Mbps downlink via S-band
7900 - 8400 MHz 100 Mbps downlink via X-band
Redundant Data Storage:
64 GB
Propulsion:
Hybrid (CP+EP)
Reaction Wheels:
1 x 1000/4000 mNms / 100/200 mNm
Payload Data Interfaces:
CAN, Ethernet, SpaceWire
Power:
Nominal voltage: 28 V
Capacity: Up to 1000 Whr
Dual hot redundant
Fully separated buses
Control Modes (using any
vector in body frame):
Nadir, Inertial, Sun Pointing,
Ground Spot Tracking, Ground Track
Dual mode (e.g. nadir + sun optimized tracking)
Attitude Determination:
6-12 Fine sun sensors, 2 star tracker, 2 gyros
